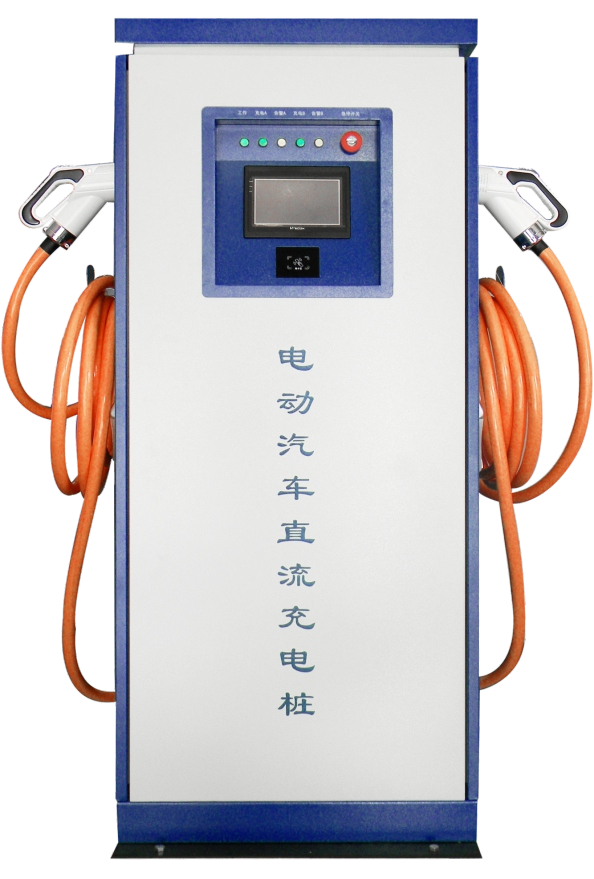

DC Floor Charging Pile

The charging pile is composed of a charger and a charging pile. The charging pile adopts AC 380V three phase input, DC 50A, 400V output. The charger can automatically charge the vehicle battery through the BMS battery management system, or it can be manually charged. The touch screen does not have a manual charging method. In the automatic charging mode, the charging pile can dynamically adjust the charging parameter according to the data provided by the battery to output the corresponding current and voltage, complete the charging process, and the charging pile meets the national energy industry standard NB/T33001-2010 Electric Vehicle Non-Vehicle Conduction Technical Conditions.

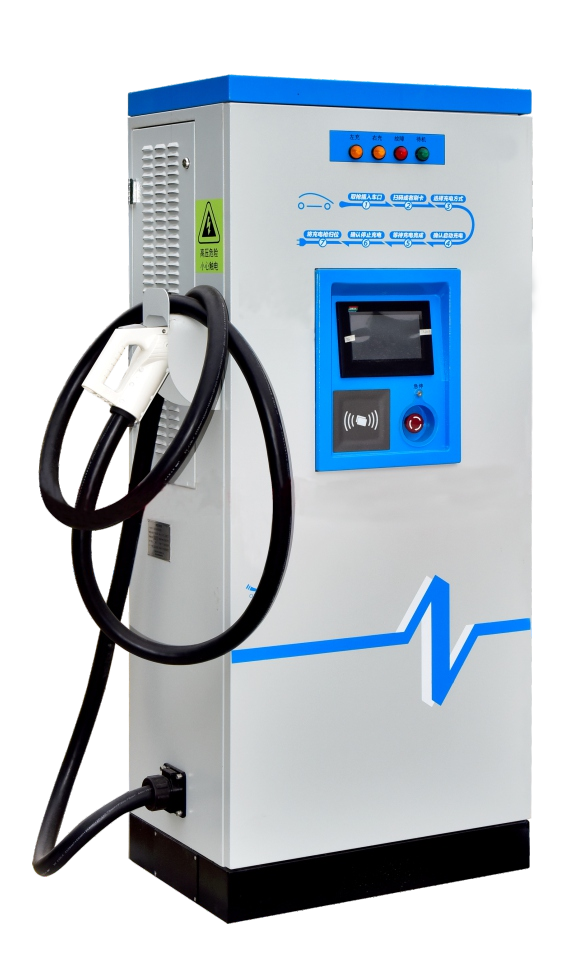

AC Charging Pile

AC Charging Pile body is mainly composed of human-machine interaction units, control units, measurement units, and safety protection units. Among them, the Human-Computer interaction unit mainly includes: pile body, LCD touch screen, card reading module, charging plug; The control unit mainly includes; Main monitoring and auxiliary module; The measurement unit is an electric meter; The safety protection unit includes: leakage protection switch, anti-collapse switch and emergency stop switch, overvoltage protection unit.
