SCB11, 13F Insulated Dry Distribution Transformer

SCB11, 13F Insulated Dry Distribution Transformer uses thin layer epoxy resin pouring to seal the dry Transformer with high- and low-pressure winding. The design is reasonable, the process is advanced, the local discharge power is small, the noise is low, and it has flame retardant, self-extinguishing, moisture-proof, heat dissipation is good, and maintainability., non-polluting and other characteristics. The surface of the iron core and clamp is specially treated with protective resin and has a beautiful appearance. The low-pressure foil is wound, and the high pressure adopts a segmented multi-layer cylindrical structure to make it evenly distributed, with small magnetic leakage, high mechanical strength, and strong short-circuit resistance.

SCB10F Insulated Dry Distribution Transformer

SCB10F Insulated Dry Distribution Transformer uses epoxy resin as an insulating material. The high-voltage coil is produced by wire winding, and the low-pressure coil is produced by foil winding. The epoxy resin is poured in a vacuum and solidified to form a high-strength glass steel structure. The epoxy resin dry Transformer has the characteristics of good electrical performance, strong lightning shock resistance, strong short-circuit resistance, high mechanical strength, low local discharge power, and high reliability. The temperature display controller can be installed to display and control the operating temperature of the transformer coil to ensure the normal service life of the Transformer.

SCBH Amorphous Alloy Core Dry Distribution Transformer

SCBH Amorphous Alloy Core Dry Distribution Transformer is a new type of energy-saving distribution Transformer with low loss. This product combines the technical advantages of the traditional epoxy pouring dry Transformer of amorphous alloy Transformer and adopts a new structural form. The SCBH series of amorphous alloy dry Transformers have the outstanding characteristics of low loss, especially empty load loss, which is 70 % lower than that of conventional 10 series dry Transformers. The product also has the advantages of compact structure, beautiful shape, low noise, low temperature rise, strong overload ability, stable electrical performance, and convenient maintenance.

35kV Dry Type Transformer

35kV Dry Type Transformer is safe, flame retardant, fire resistant and non-polluting, and can be installed directly in the load center. No maintenance, easy installation. It has good moisture-proof performance and can be put into operation without pre-drying after shutdown. It has low loss, low local discharge power, and low noise, and can be operated 120 % rated load under forced air-cooling conditions. It is equipped with a perfect temperature protection control system to provide reliable guarantee for the safe operation of the Transformer. The reliability index of this product has reached the advanced level in China.

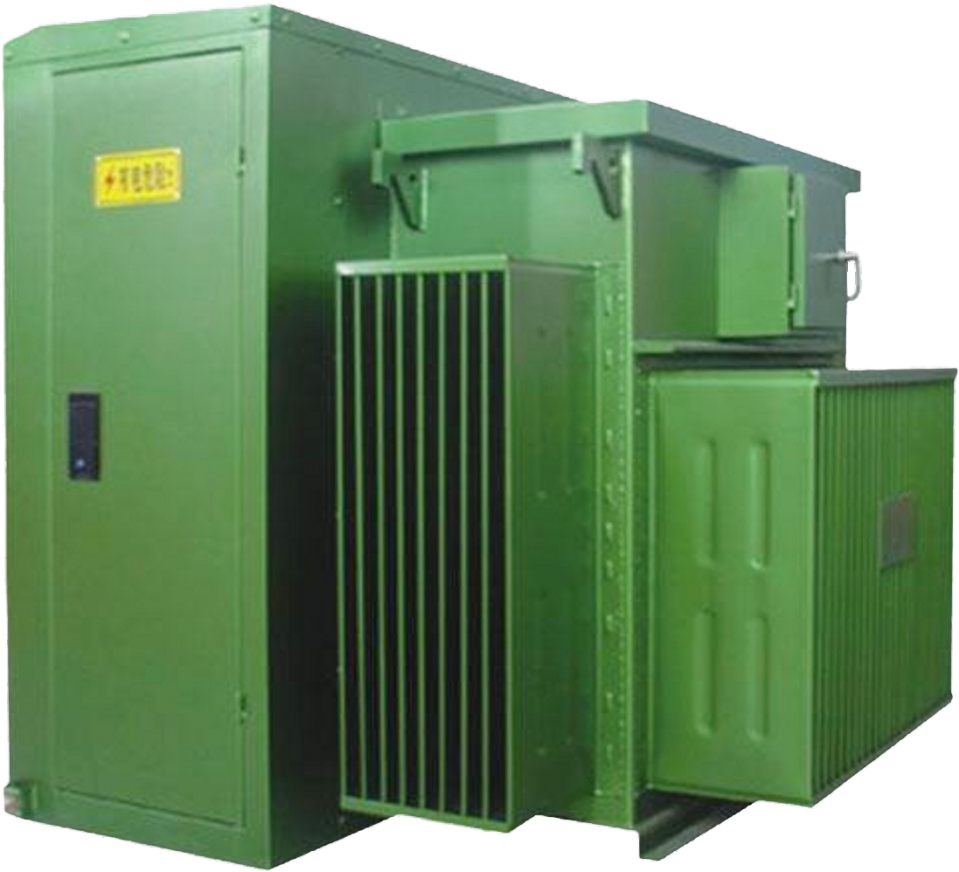

ZGS Type Combined Transformer (American Box Change)

ZGS Type Combined Transformer (American Box Change) (also known as American box change) is a new type of product designed and manufactured specifically for the distribution of urban networks in China on the basis of summarizing the on-site service and operating experience of American box change over the years, digesting and absorbing advanced foreign technologies and design concepts, and has reliable power supply, reasonable structure, rapid installation, flexibility, convenient operation, small size, beautiful and generous performance. It is mainly used in 10kV urban and rural power grids and is also suitable for public places such as industrial and mining enterprises, airports, stations, ports, highways, and subways.

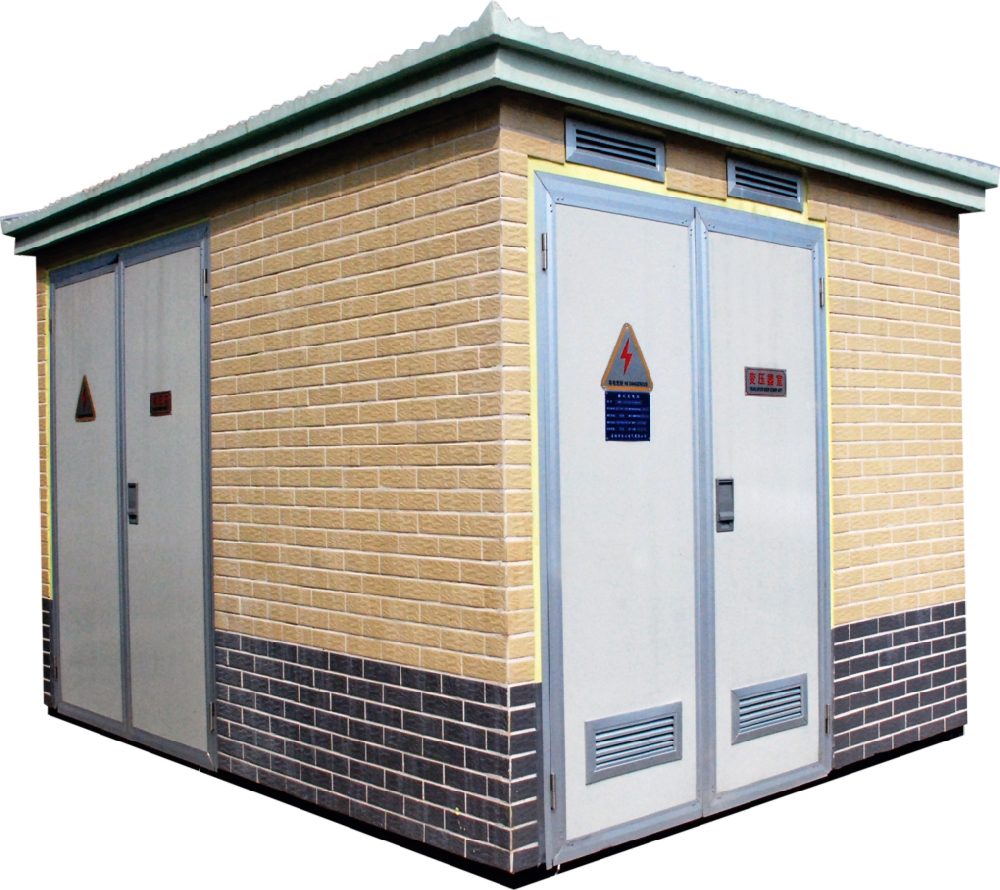

YB¨ (or ZBW) Type Prefabricated Substation (European Box Change)

YB¨ (or ZBW) Type Prefabricated Substation (European Box Change) is a combination of high-voltage electrical equipment, Transformers, and low-voltage electrical equipment into compact single-set equipment for use in urban high-rise buildings, urban and rural buildings, residential areas, high-tech development zones, small and medium-sized factories, mines, oil fields, and temporary construction of electricity. It is used for receiving and distributing electrical energy in power distribution system.

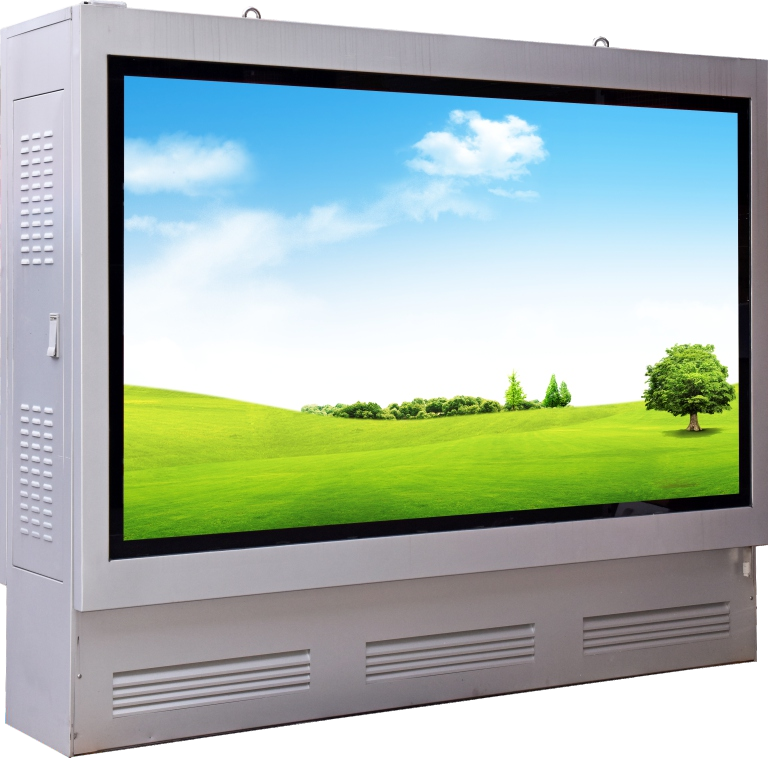

YBM-12 Type Buried substation

YBM-12 Type Buried substation consists of an underground combination Transformer, a fully insulated fully sealed compact high-voltage cabinet, an outdoor low-pressure cabinet, and a low-pressure protective shell with a light box. It is a complete set of underground Transformer distribution equipment that has been pre-assembled in the factory. According to the needs of users, the lamp box cable branch box and lamp box high voltage measurement can also be added. The ground buried box change is mainly used to replace the traditional civil form substation, European box change, American box change, and realize the new power generation and distribution functions. Power product.
