Purpose

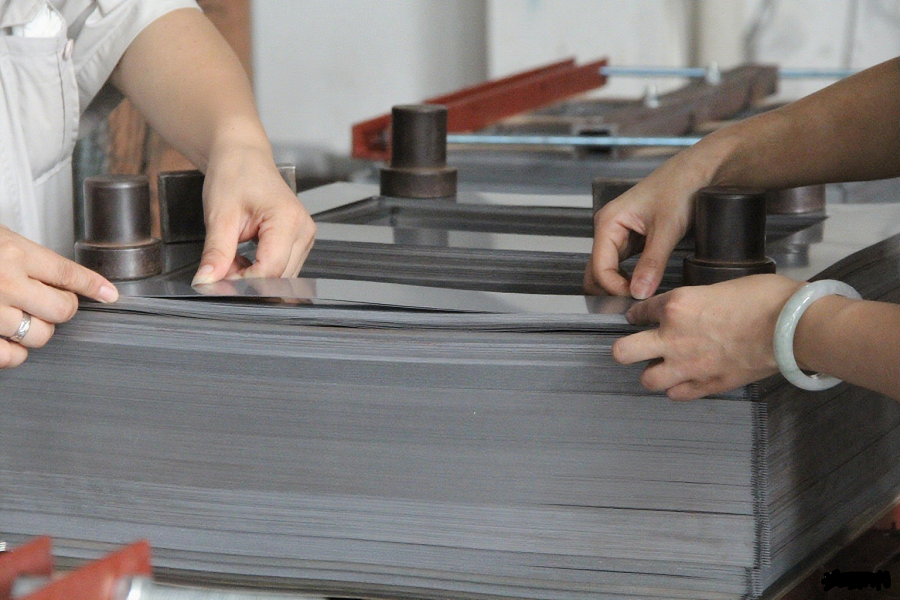

The transformer core is the skeleton of the magnetic circuit and the energy transmission hub of the transformer, consisting of oriented silicon steel sheets stacked together. It uses electromagnetic induction to achieve the conversion of electrical energy between the primary and secondary windings, constructing a low-resistance magnetic circuit, Structure and working principle

Structural characteristics

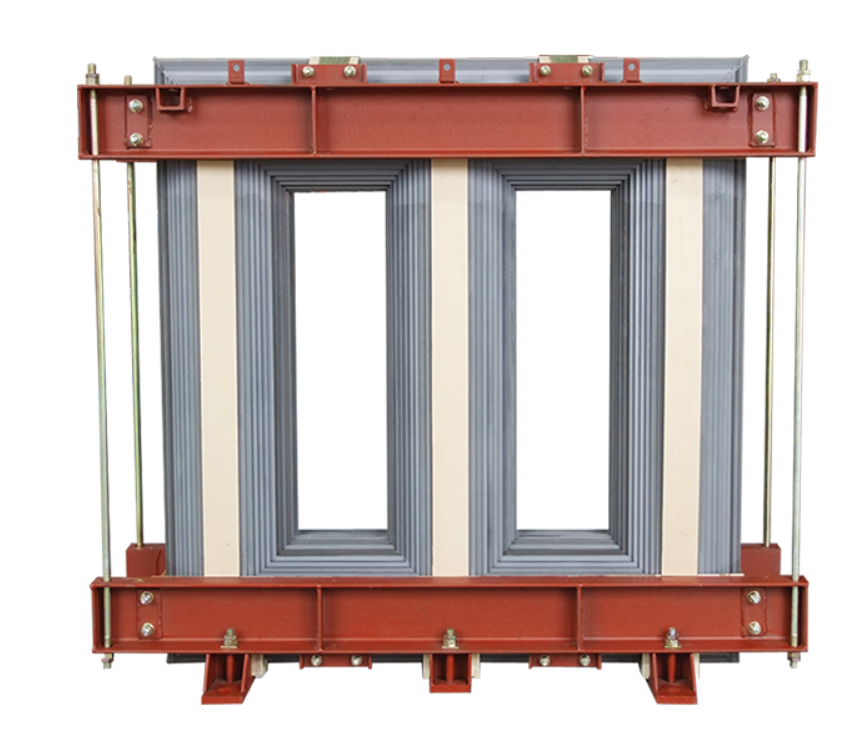

Three vertical iron core columns are stacked with grain-oriented silicon steel sheets, connected by yokes at the top and bottom to form a closed magnetic circuit with low magnetic resistance and low no-load current.

How it works

Three-phase AC is passed through the primary winding, which generates an alternating magnetic flux with a phase difference of 120 degrees in the core. The magnetic flux is coupled to the secondary winding through the low-magnetic reluctance path in the core, and the three-phase electrical energy is balanced and converted based on the law of electromagnetic induction.

Model specifications

1、Can be made according to the drawing requirements;

2、Can provide a complete set of solutions for iron core design, transformer design.

Advantages

Technical support - Professional design team provides full-process technical support;

Specialized manufacturing - Deeply cultivating transformer core manufacturing, with profound experience;

Delivery reliability - stable and controllable quality, precise delivery and performance.
