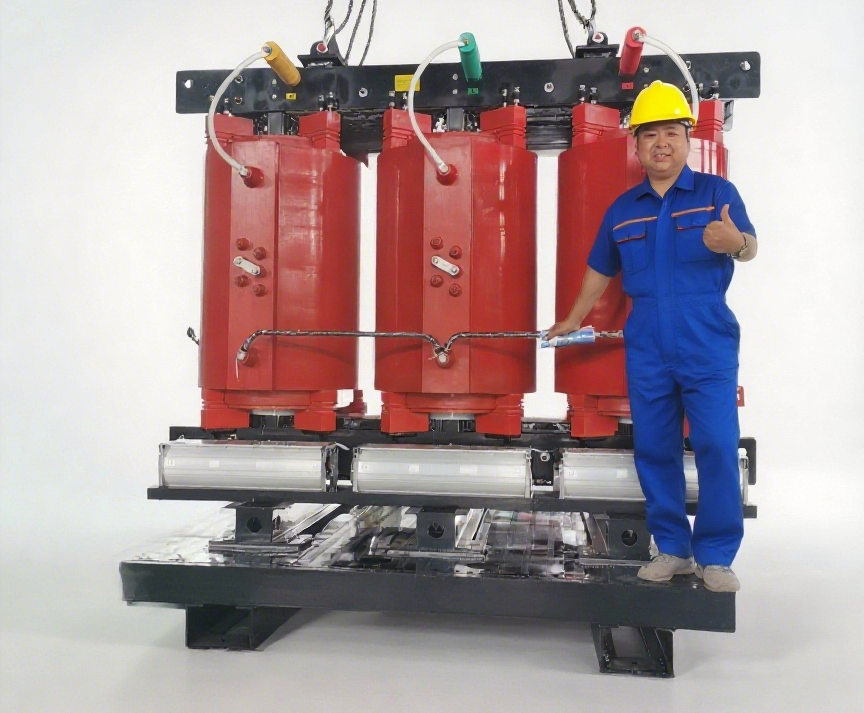

We can provide transformer designs in accordance with IEC or Chinese standards based on customer requirements. The 35kV class dry-type transformer (35-10kV) has significant advantages. It uses air as the cooling medium, and its oil-free design ensures safety against fire and environmental friendliness, allowing it to be directly installed in load centers. This transformer features high mechanical strength, enabling it to effectively resist short circuits; it also boasts excellent electrical performance, with low partial discharge and high resistance to lightning impulses. It has strong heat dissipation capacity, offering both natural and forced air cooling modes, and excellent overload capacity. Additionally, it is equipped with an intelligent temperature control system for real-time monitoring and protection. Widely used in urban power grids, high-rise buildings, etc., it is an efficient and reliable power conversion device.

◆ Safe and reliable: It adopts flame-retardant insulating materials, which are non-combustible, fireproof and explosion-proof, and can be directly installed in load centers.

◆ Strong short-circuit resistance: The winding structure is reasonably designed with high mechanical strength, which can effectively resist short-circuit impact.

◆ Low loss: High-quality iron core materials and advanced manufacturing processes are selected to reduce no-load and load losses, achieving excellent energy-saving effects.

◆ Moisture and pollution resistance: The winding surface treatment process enables it to adapt to harsh environments such as humidity and heavy dust, ensuring stable operation.

◆ Maintenance-free or low-maintenance: With a simple structure, it reduces daily maintenance work and lowers the comprehensive operating cost.
