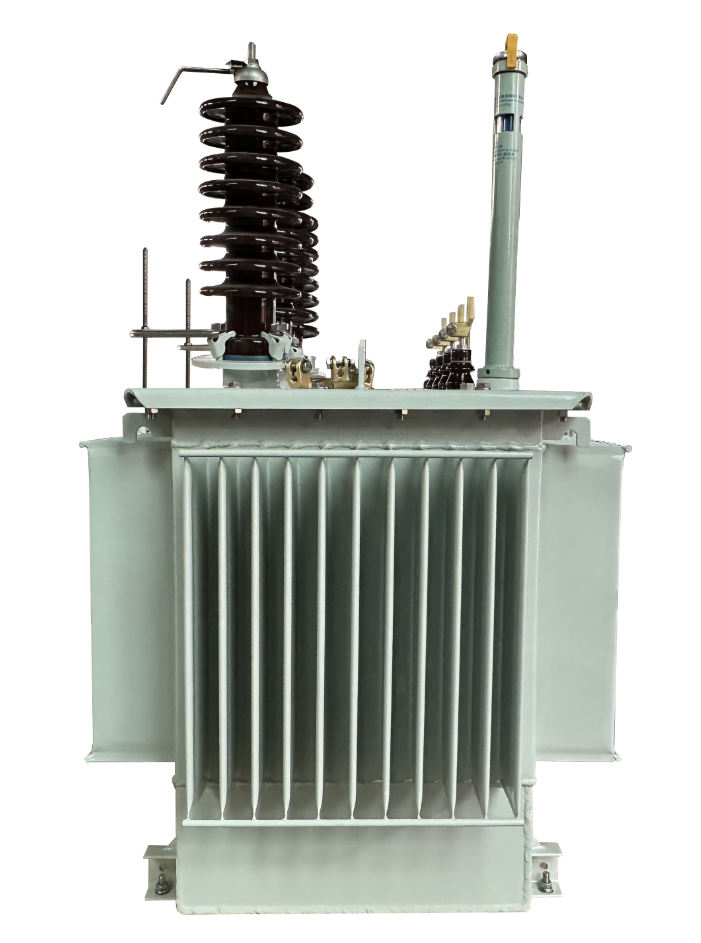

Transformers can be customized to meet IEC standards or Chinese GB standards according to client requirements. The 35kV oil-immersed station service transformer（35-0.4kV） employs premium silicon steel sheets with high permeability and low loss, combined with a draw rod-braced rigid frame structure. This design ensures exceptional mechanical strength, stable operation, low noise levels, and robust short-circuit resistance. Designed for stepping down 35kV high-voltage grid power to 400V low-voltage distribution, it is widely used in industrial and mining facilities, new energy power stations, urban distribution networks, and large-scale commercial complexes. Meeting demands for high efficiency, energy conservation, and reliable power supply, this transformer serves as an optimal solution for power system upgrades and retrofits.

  ◆The body is pressed by high-strength electrician laminate, all leads are firmly clamped, and the supports and pads are made of high-density insulated cardboard, which improves the electric field distribution of the transformer;

 ◆The use of corrugated Mailbox, beautiful shape, high heat dissipation efficiency. Highland reinforced casing is suitable for high altitude areas. The series of Transformers have advanced technical performance, energy conservation, environmental protection, safety and reliability;

 ◆The main implementation standards of the products:  IEC60076、GB1094、GB/T6451、JB/T3837.
